EVOline® Push

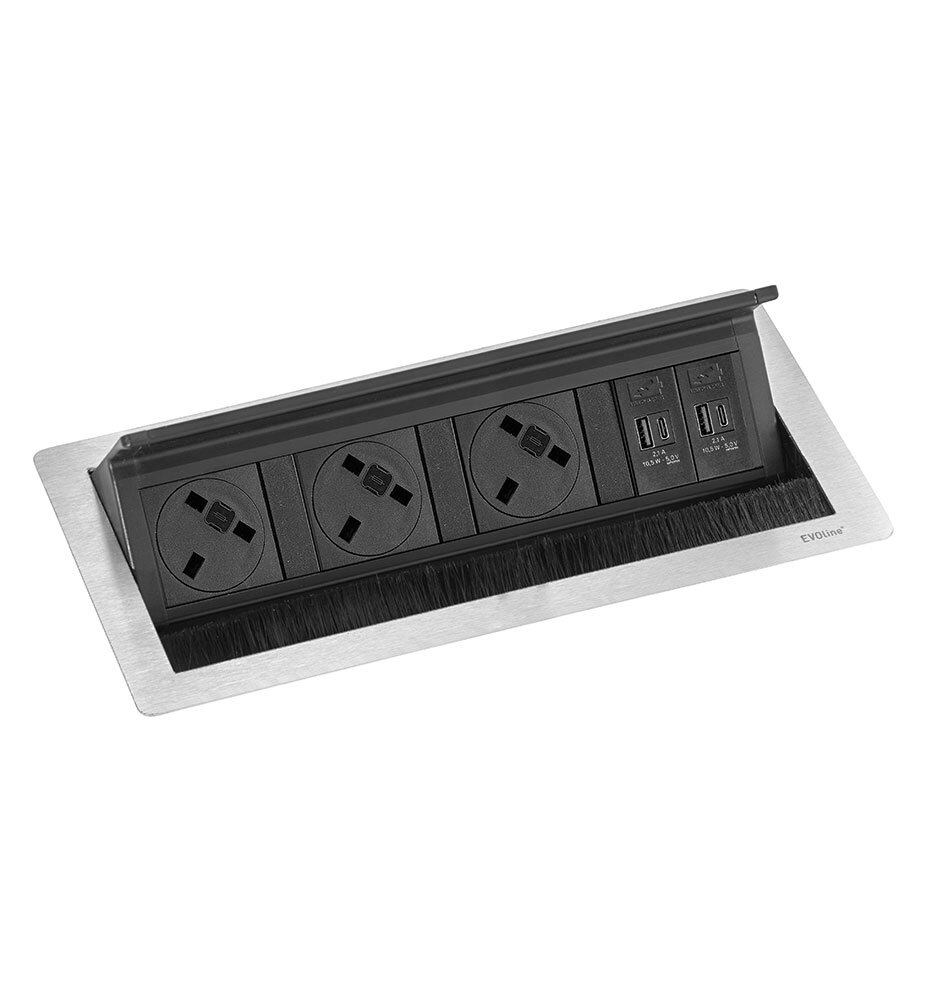

The EVOline® Push is a power module specifically designed for Configure-8 Flip-Top tables. The discreet design can be opened by pushing the panel down to release the pop-up sockets and cables are kept neatly disguised under the table.



DIMENSIONS: See below

Accessories

Features

  • Cables fit into tray and front fascia panel of Configure-8 tables
  • Power modules use daisy chaining to reduce reliability on extension cables
  • Up to 6 sockets per unit
  • RJ45 Cat 6 data ports and the power sockets can be ordered to accept different country’s requirements
  • Meets BS 6396:2008 & BS EN 15372: 2008 Level 2 for general contract use

Options

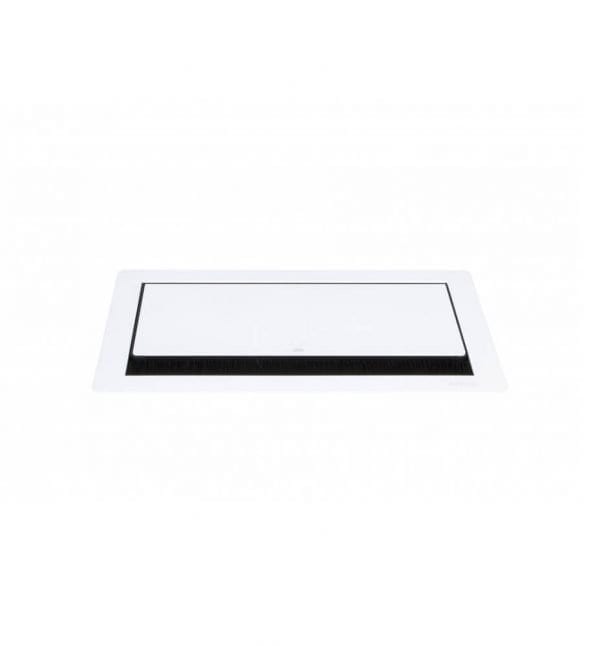

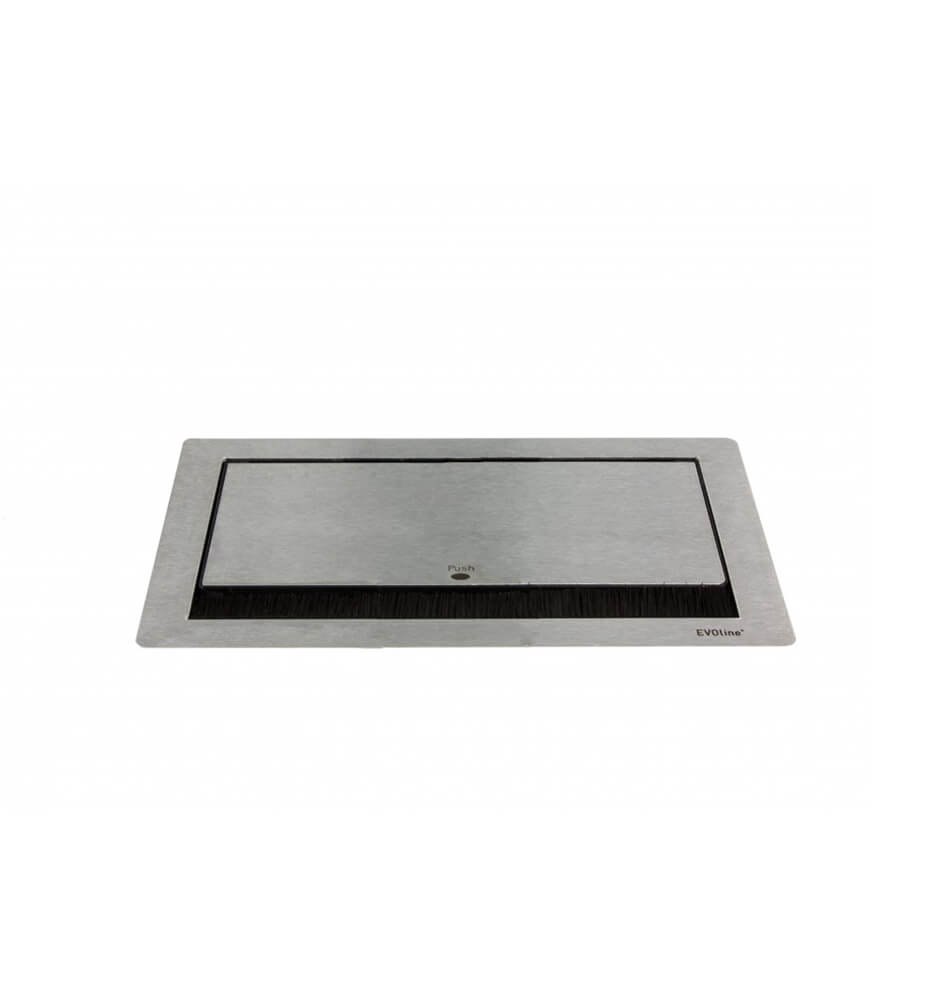

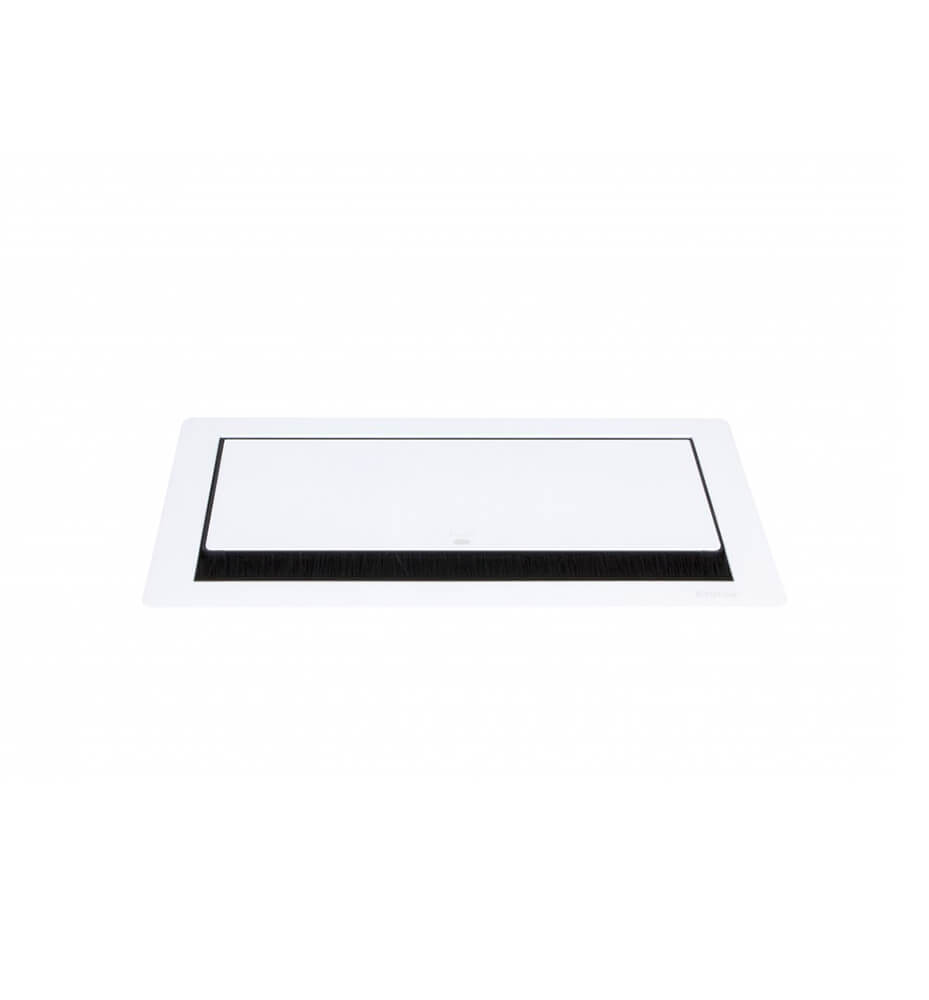

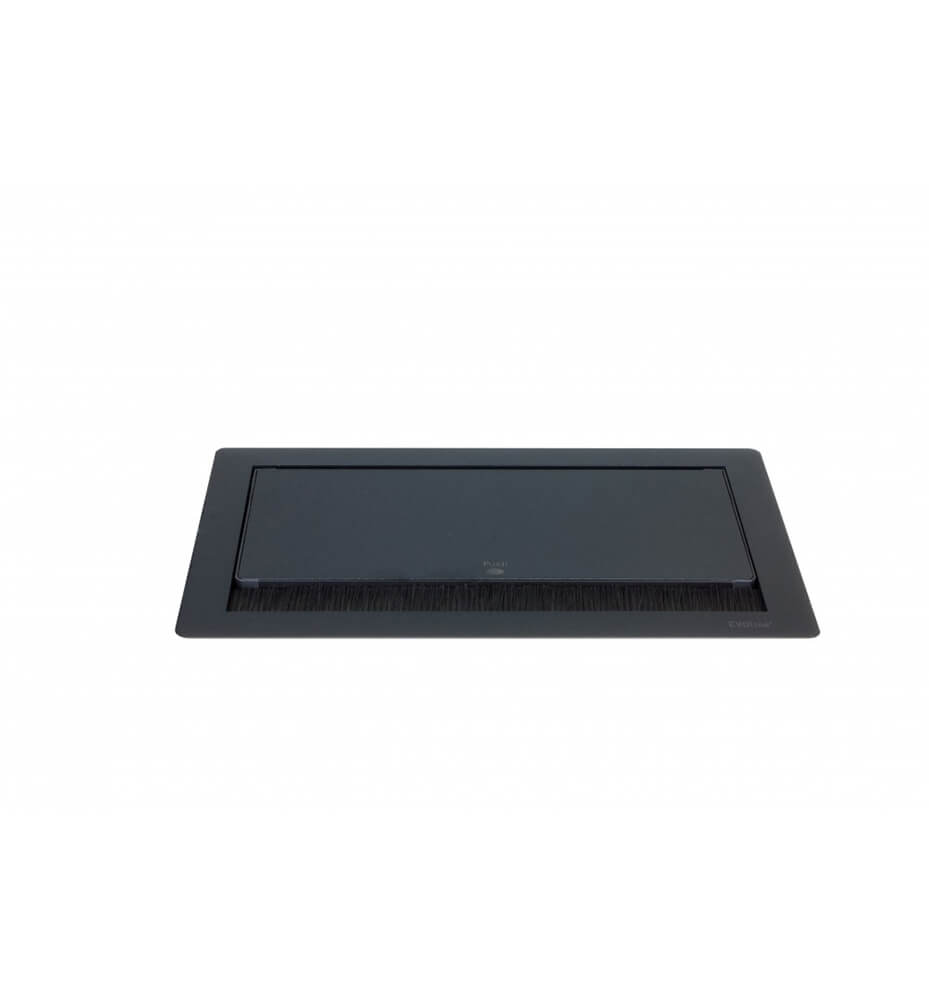

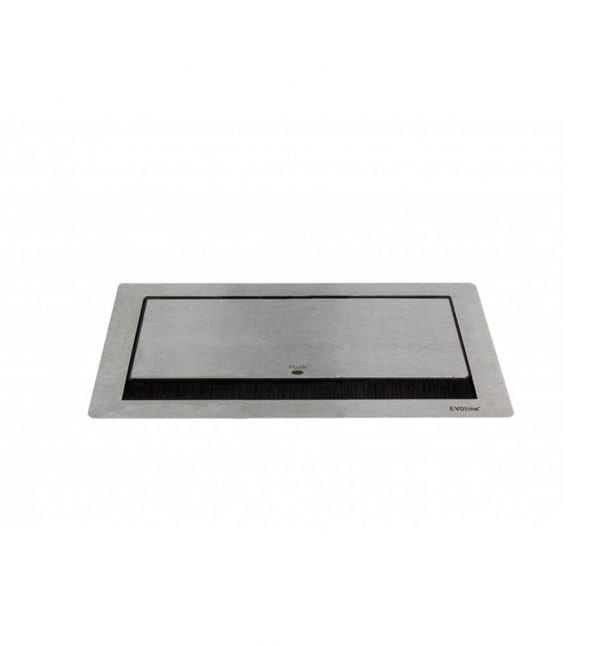

  • Available in either white, black, grey or stainless steel finishes
  • Up to 3 UK, VDE or FR/BE power sockets
  • USB, CAT6 and HDMI data connections

Multimedia (UK/FR/VDE)

PUSH.Q10055

  • Medium
  • 1 x UK
  • 2 x USB Charger
  • 1 x HDMI
  • 1 x MC Cat6 Data

PUSH.Q10056

  • Large
  • 2 x UK
  • 2 x USB Charger
  • 1 x HDMI
  • 1 x MC Cat6 Data

PUSH.Q10223

  • Medium
  • 1 x VDE
  • 2 x USB Charger
  • 1 x HDMI
  • 1 x MC Cat6 Data

PUSH.Q10226

  • Medium
  • 2 x France/Belgium
  • 2 x USB Charger
  • 1 x HDMI
  • 1 x MC Cat6 Data

Power / data

PUSH.Q15008

  • Medium
  • 2 x UK
  • 2 x MC Cat6 Data

PUSH.Q15009

  • Extra Large
  • 3 x UK
  • 2 x MC Cat6 Data

PUSH.Q10228

  • Large
  • 34x France/Belgium
  • 34x MC Cat6 Data

PUSH.Q15010

  • Medium
  • 2 x VDE
  • 2 x MC Cat6 Data

Power / USB charge

PUSH.Q15012

  • Medium
  • 2 x UK
  • 2 x USB Charger

PUSH.Q15013

  • Extra Large
  • 3 x UK
  • 3 x USB Charger

PUSH.Q15014

  • Medium
  • 2 x VDE
  • 2 x USB Charger

PUSH.Q15017

  • Large
  • 3 x France/Belgium
  • 3 x USB Charger
